Aligning development, deployment and monitoring for AI: a causal perspective

MLHC pre-conference workshop 2025

Wouter van Amsterdam, MD, PhD

Department of Data Science Methods, Julius Center, University Medical Center Utrecht

2025-08-14

Much of AI is ‘predict, predict, predict!’

  • from an ECG, predict presence of heart failure (typically diagnosed with cardiac echo)
  • using medical information from EHR, predict 10-year heart attack risk

Predictive performance measures

  • sensitivity, specificity

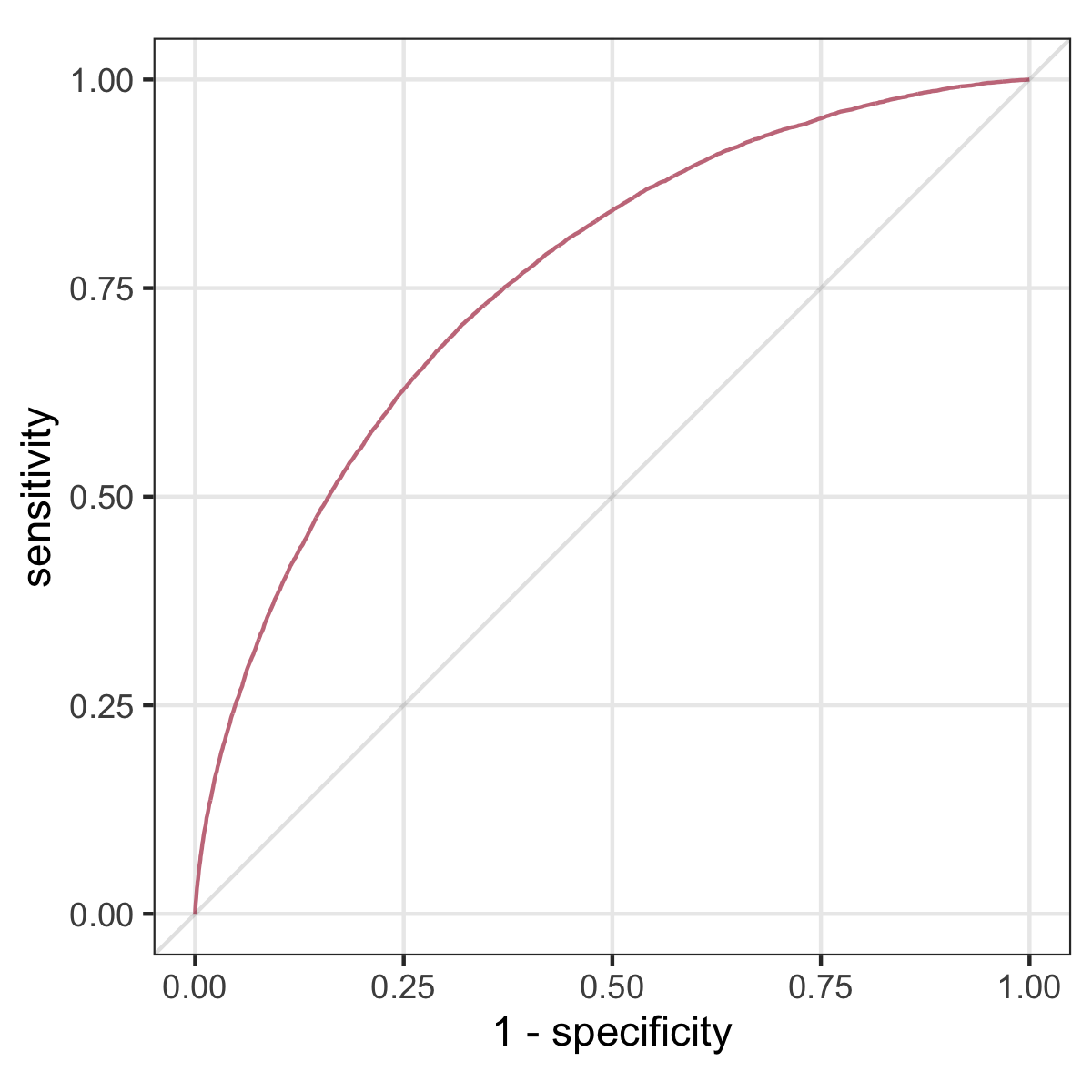

  • AUC
  • accuracy
  • calibration

Predict presence of heart failure from ECG (Yao et al. 2021)

  • prediction: structural heart disease
  • intervention: refer patient for cardiac echo
  • outcome: diagnosis of heart failure on echo
  • outcome (impact): reduce preventable early cardiac death / morbidity

10 year heart attack risk (Hippisley-Cox et al. 2024)

  • prediction: heart attack in 10 years
  • intervention: prescribe cholesterol lowering medication
  • outcome: heart attack
  • outcome (impact): reduce heart attacks

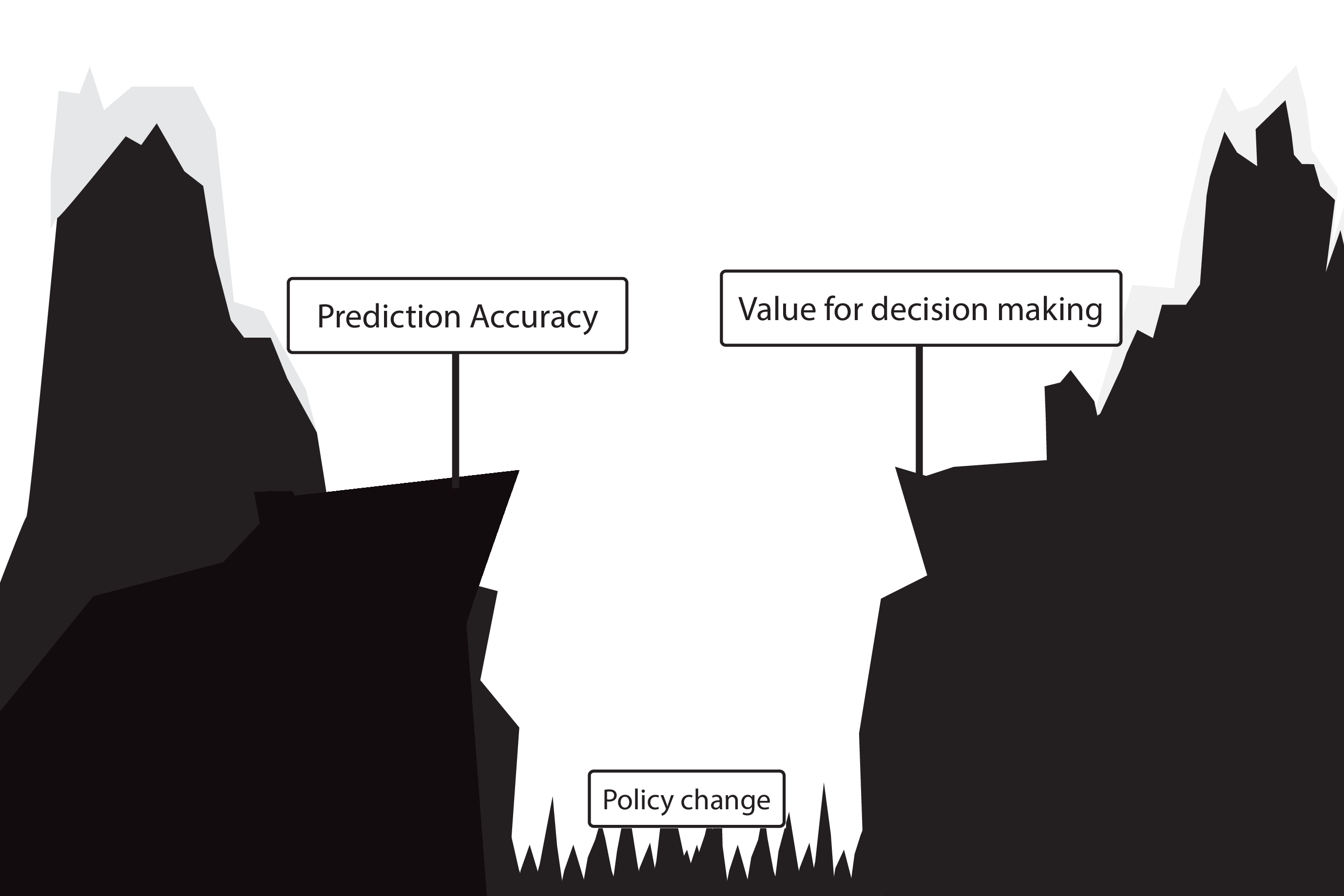

Predictive performance vs impact

predictive performance

  • sensitivity, specificity
  • AUC
  • accuracy
  • calibration

healthcare impact

  • interventions (medical decisions)
  • patient outcomes
  • the hope is: better predictive performance \(\implies\) better impact
  • unfortunately, this is not automatically the case

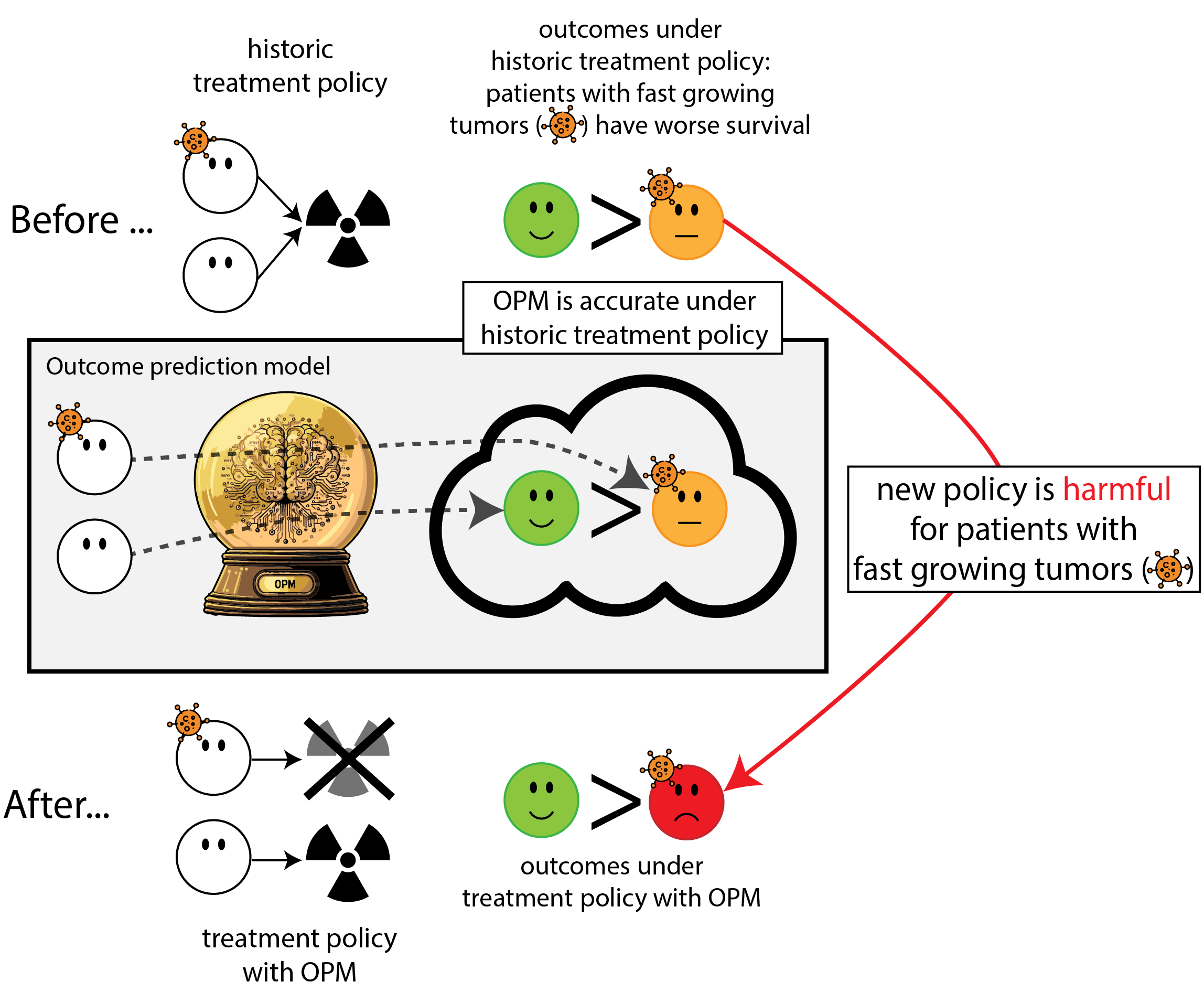

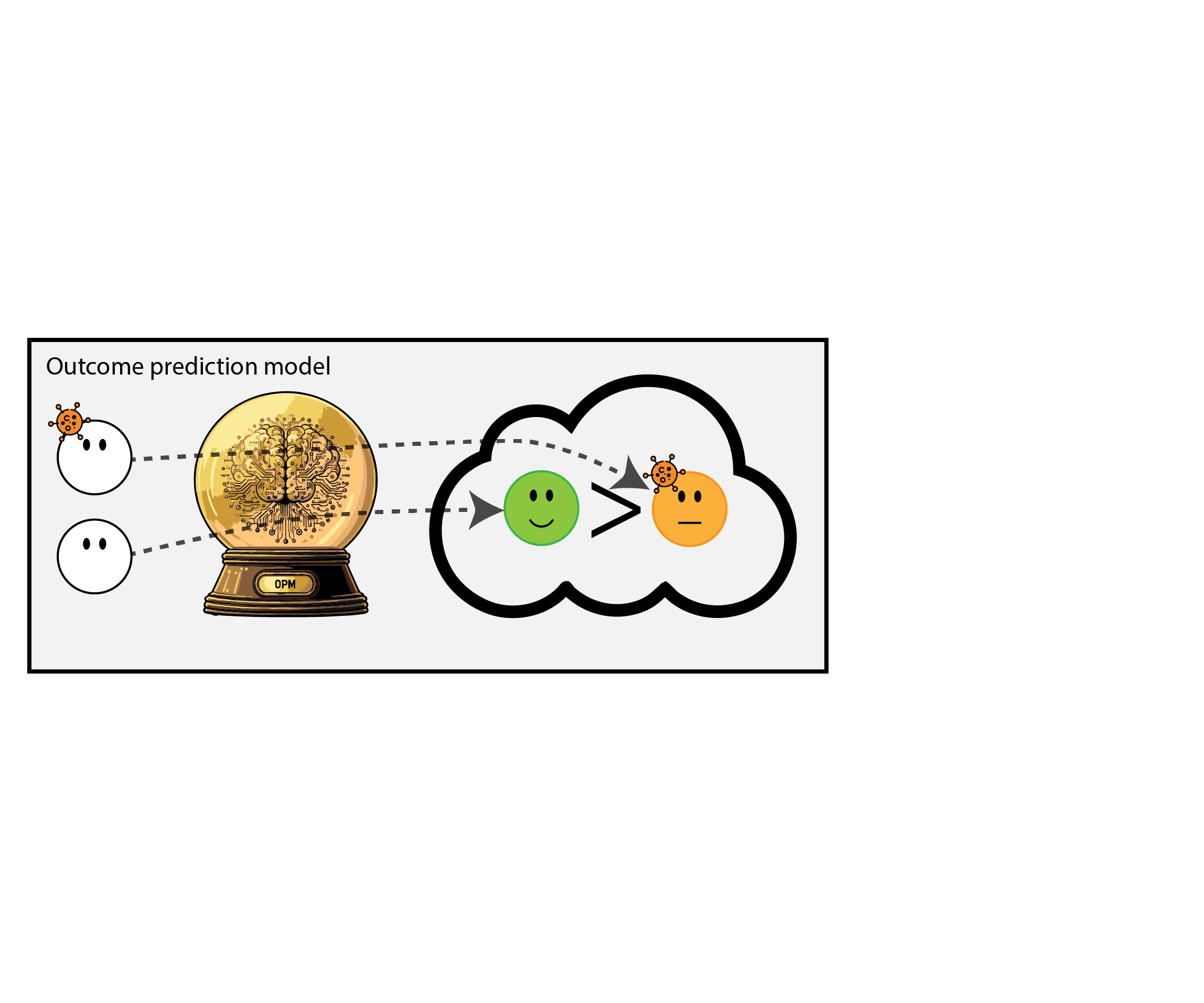

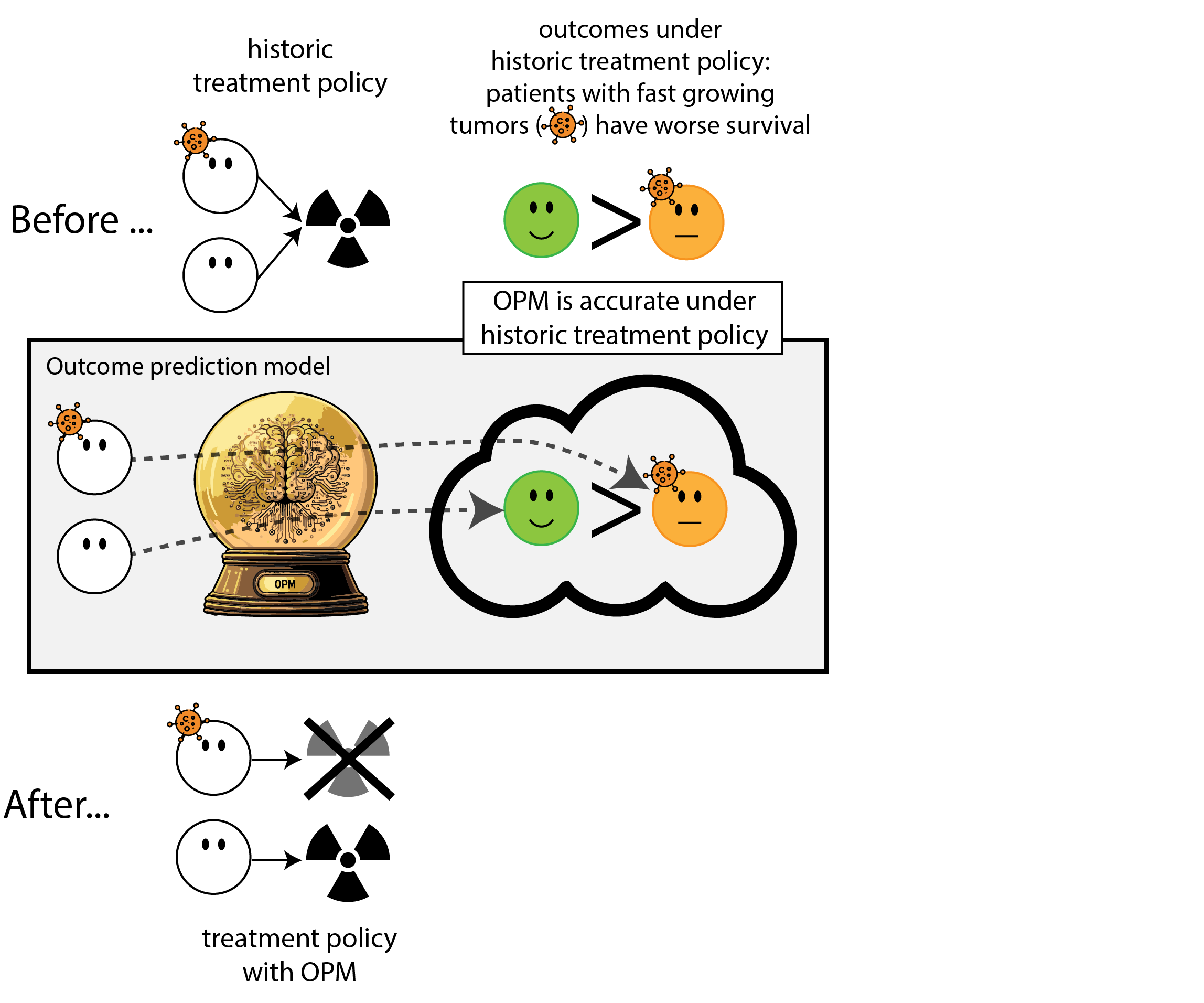

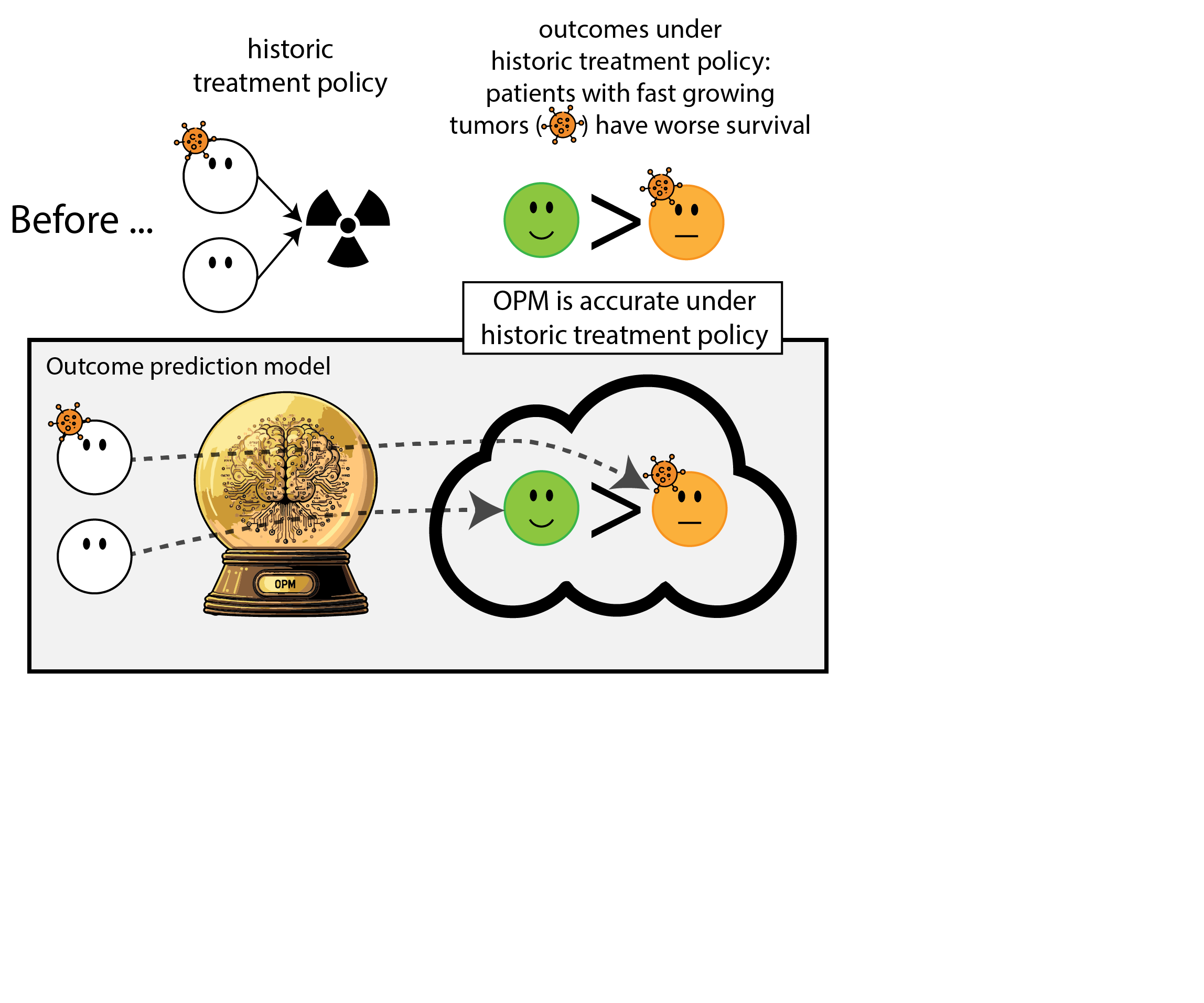

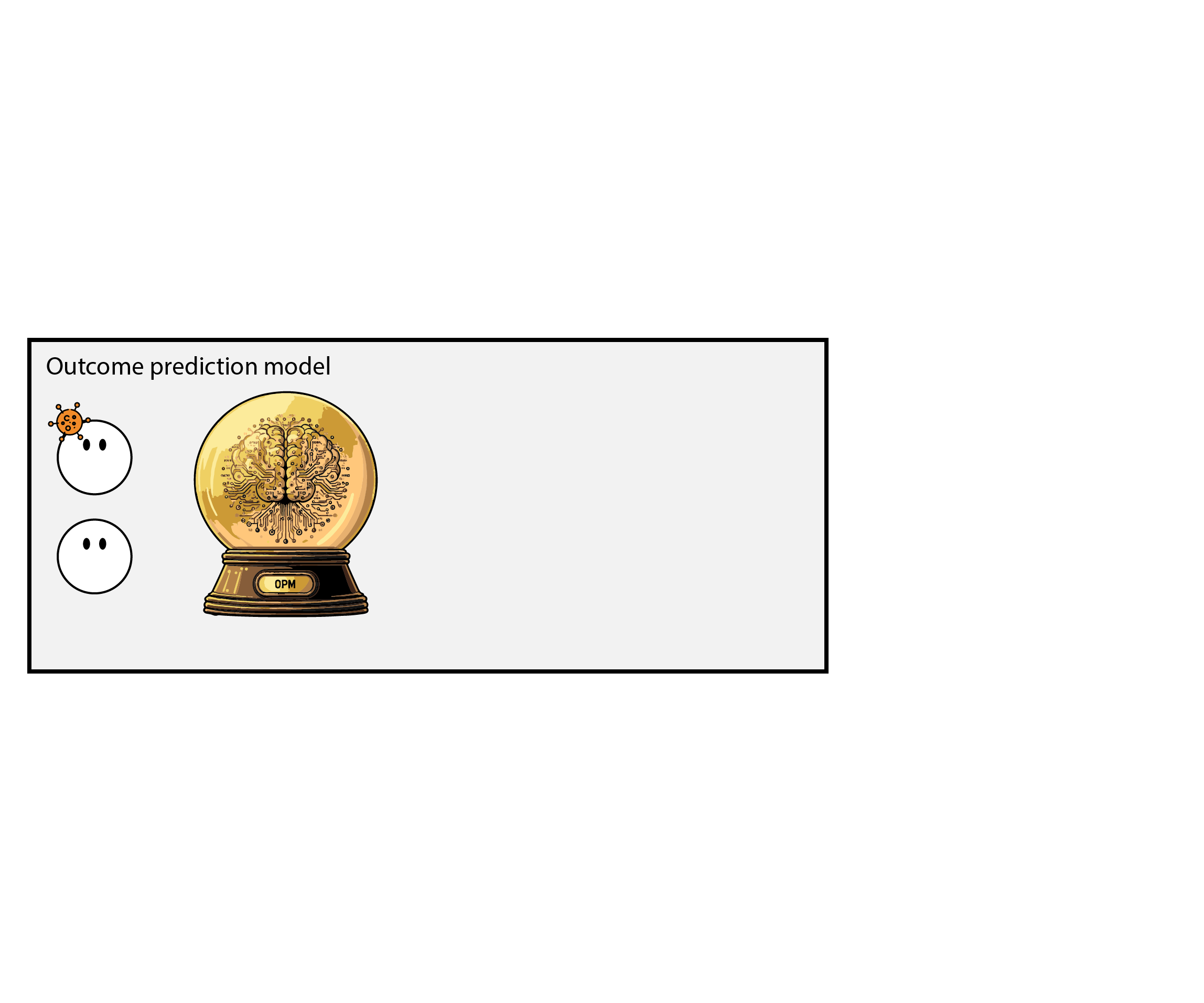

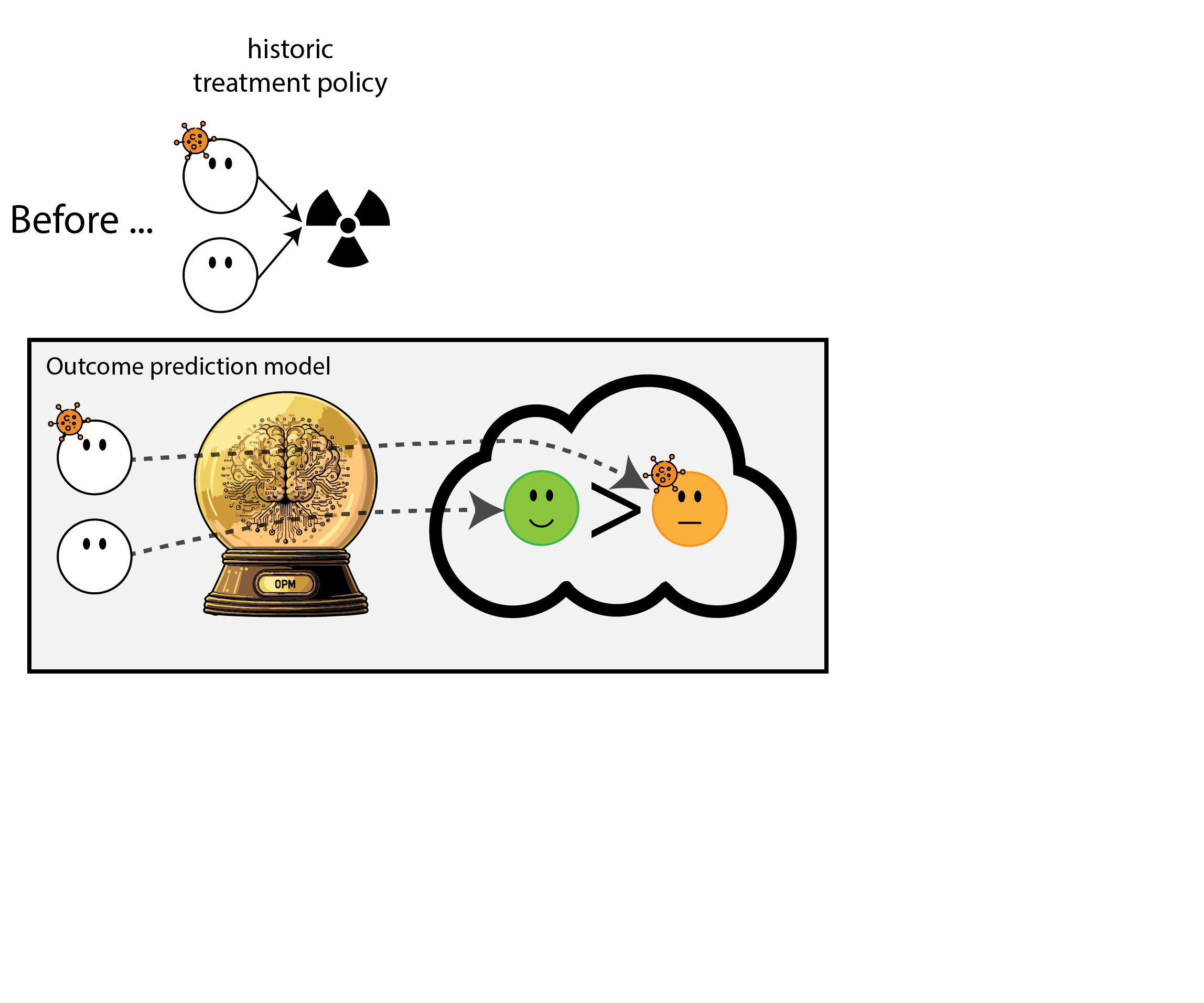

When accurate prediction models yield harmful self-fulfilling prophecies (Van Amsterdam et al. 2025)

What happened here? 18

  • had a ‘good’ model, got a bad policy
  • model predicted outcome (survival) under historic treatment policy (always radiation)
  • did not predict what outcomes would be under alternative policy (no radiation)
  • in this case, unmodeled treatment effect heterogeneity (aka treatment effect modification, interation, differing conditional average treatment effects)

Let’s monitor the AI model for performance over time

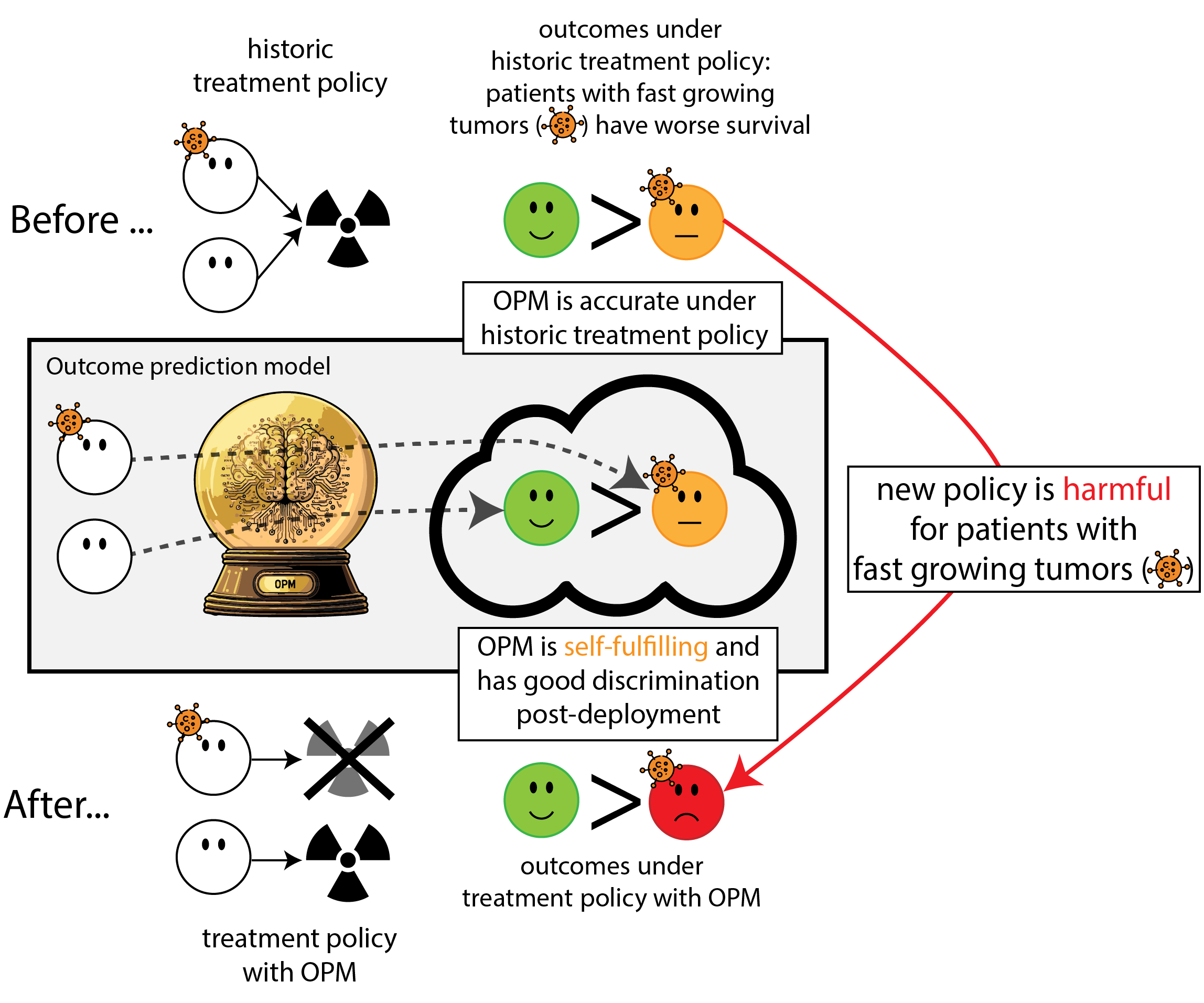

What happened in monitoring?

  • the model re-inforced its own predictions (self-fulfilling prophecy)
  • took a measure of predictive performance (AUC)
  • mistook it for a measure of (good) impact
  • many potential examples (e.g. ICU stop treatment (Balcarcel et al. 2025), others (Center, n.d.))

Prediction model: walking stick

Data Scientist are concerned with optimizing predictive performance

Health care provider: stick user

The healthcare provider uses the prediction model for decision making

Health care provider + stick = policy

This combination leads to a new policy, which may yield unexpected results

Another way: prediction under intervention

When predicting an outcome to support decisions regarding an intervention,

this prediction needs a clear relationship with the targeted intervention (van Amsterdam et al. 2024)

Hilden and Habbema on prognosis (Hilden and Habbema 1987)

“Prognosis cannot be divorced from contemplated medical action, nor from action to be taken by the patient in response to prognostication.”

  • not: what’s risk of heart attack given age and cholesterol,
  • but: what’s risk of heart attack given age and cholesterol, if we were not to give cholesterol lowering medication (vs. if we would)
  • may sound like \(1+1=2\) but often not done; e.g. in the development data of Qrisk3, many patients already underwent cholesterol lowering medication (Peek et al. 2017)

Prediction under hypothetical intervention incorporates effects of treatment in its predictions

  • estimates the expected outcome \(Y\)
    • if we were to give treatment \(T\) to patient with features \(X\)
  • a.k.a. ‘counterfactual prediction’
  • can predict outcomes under multiple treatments, where one treatment may be ‘no (additional) treatment / standard treatment’

How to build prediction under intervention models?

  • in its simplest form, can be just like fitting any other predictive model, as long as causal identifyability assumptions are fulfilled:
    • unconfoundedness (no hidden variables causing both the intervention and the outcome)
    • positivity, consistency
  • these hold by design in Randomized Controlled Trials (RCT)
  • RCTs are in that sense ideal (e.g. Kent et al. 2020), but:
    • typically limited sample size
    • may not have measured right information (e.g. imaging markers, new biomarkers, full-EHR)
    • trial participants may not be representative of the target population of use (e.g. Lewis et al. 2003)
  • can emulate RCTs with non-experimental (observational) data using a causal inference framework, e.g. using target trial emulation

Benefits of prediction under intervention

  • policy rule: if expected outcome under treatment \(A\) is better than under treatment \(B\) (potentially by a certain margin), give treatment \(A\), otherwise \(B\)
  • as opposed to other prediction models, this policy has foreseable positive impact on health outcomes

Benefits of prediction under intervention

  • policy rule: if expected outcome under treatment \(A\) is better than under treatment \(B\) (potentially by a certain margin), give treatment \(A\), otherwise \(B\)
  • as opposed to other prediction models, this policy has foreseable positive impact on health outcomes
  • as a ‘bonus’, these models have stable calibration under shifts in policy that depend on the models’ features (e.g. Feng et al. 2024)

Measuring pre- and post-deployment

pre-deploy deployment study
metric
model discrimination (AUC) ✅
calibration ✅
health system interventions ✅
patient outcomes ✅

Legend
🔁 changes ✅ stable 🔻 worsens

Measuring pre- and post-deployment

pre-deploy post-deploy
metric
model discrimination (AUC) ✅ 🔁
calibration ✅ 🔻
health system interventions ✅ 🔁
patient outcomes ✅ 🔁

Legend
🔁 changes ✅ stable 🔻 worsens

  • for ‘non-causal’ prognosis prediction models that don’t factor in treatment decisions:
    • AUC will change, calibration will worsen as distribution changes
    • interventions and patient outcomes may change in unforeseen ways

Measuring pre- and post-deployment

pre-deploy ‘non-causal’ ‘causal’
metric
model discrimination (AUC) ✅ 🔁 🔁
calibration ✅ 🔻 ✅
health system interventions ✅ 🔁 📈
patient outcomes ✅ 🔁 📈

Legend
🔁 changes ✅ stable 🔻 worsens 📈 changes in expected way

  • for prediction under intervention model
    • calibration preserved under shifts in policy conditional on the model’s features
    • interventions and outcomes change in foreseeable ways (under assumption on policy)

Outlook

Current status

Takeaways

  • when predicting prognosis, need well defined relation between prediction and potential treatment decisions
  • in particular, prediction under intervention has the advantages of:
    1. clear relationship between model performance and value for decision making
    2. stable calibration under shifts in treatment policy, conditional on the model’s features
  • these models need unconfoundedness, so either
    • develop using RCT data
    • use observational causal inference
  • evaluate and monitor AI based on what we care about: impact on healthcare
